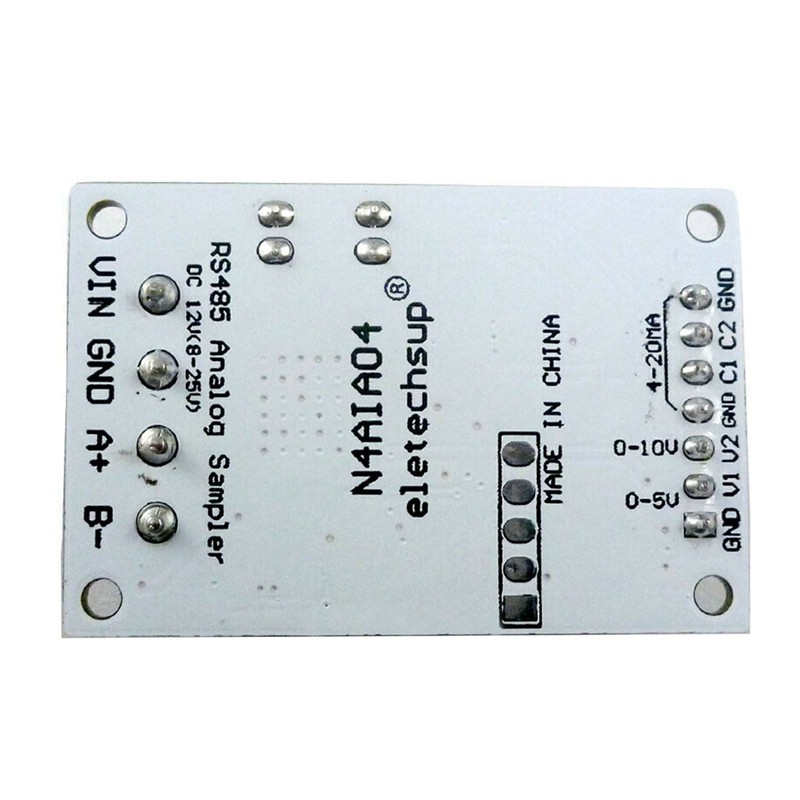

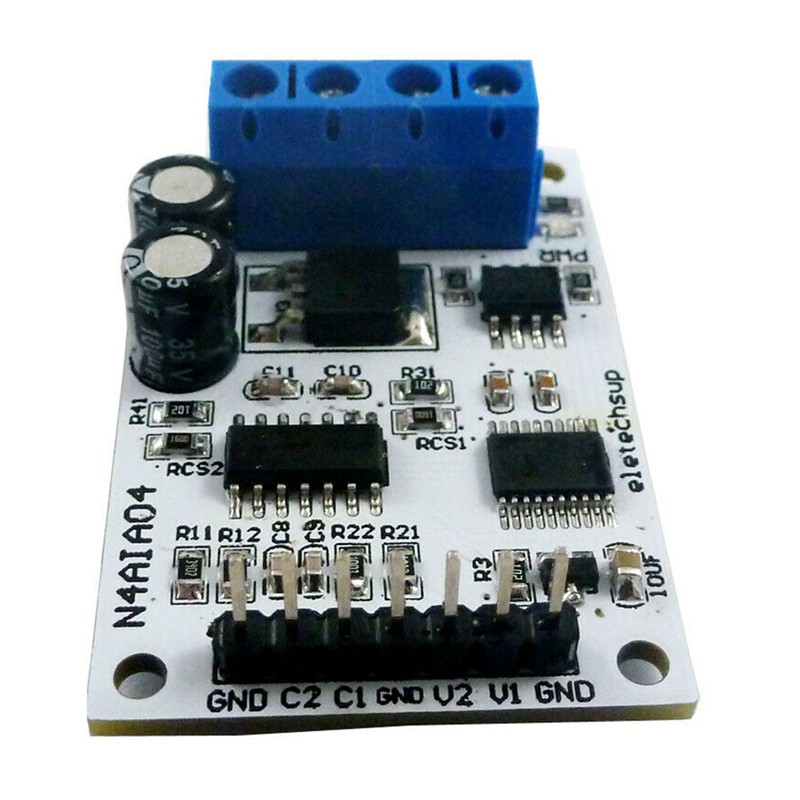

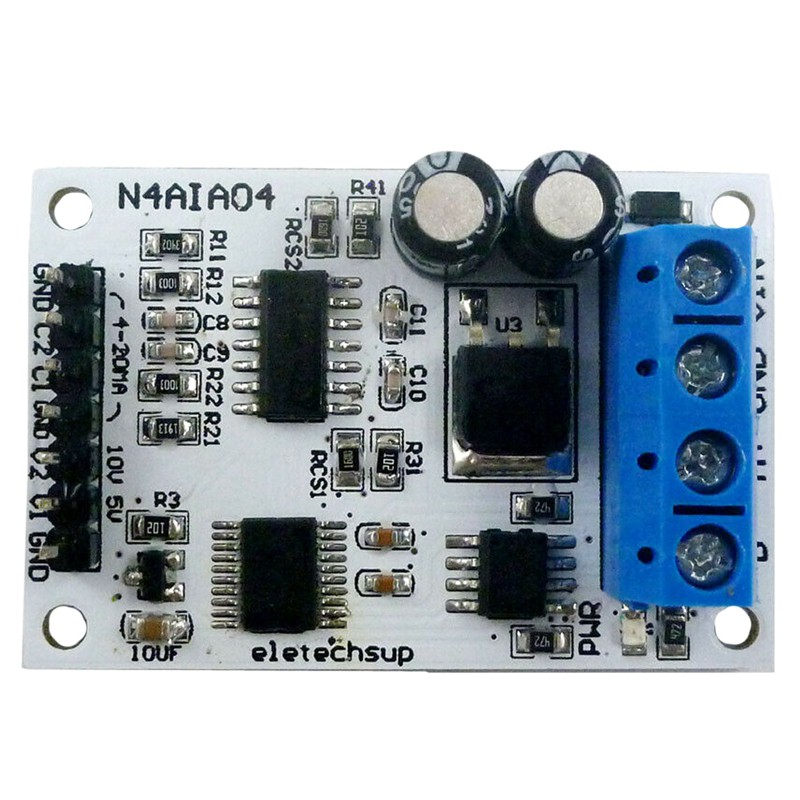

Mô Đun Thu Tín Hiệu Dc 12v 4-20ma 0-5v Rs485 Bus Rtu
0 Đánh Giá
0 Đã Bán
41
160.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ bảy 29/05/2021 lúc 02:56 CH
1: Operating Voltage: DC 8-25V(DC 9V 12V 15V 24V)
2: Operating Current: 10-14MA
3: BUS RTU Command support 03 06 function code

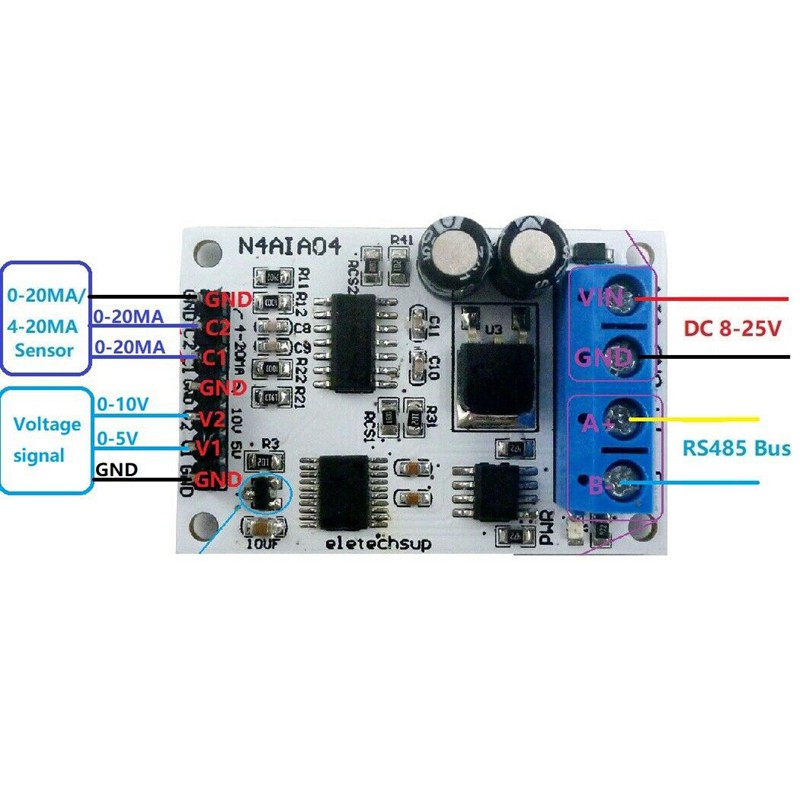

4: V1(CH1) channel voltage measurement range is 0-5V, V2(CH2) channel voltage measurement range is 0-10V, C1/C2(CH3/4) channel current measurement range is 0-20MA/4-20MA
5: Voltage resolution is 0.01V, measurement accuracy is 1%; current resolution is 0.1MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated

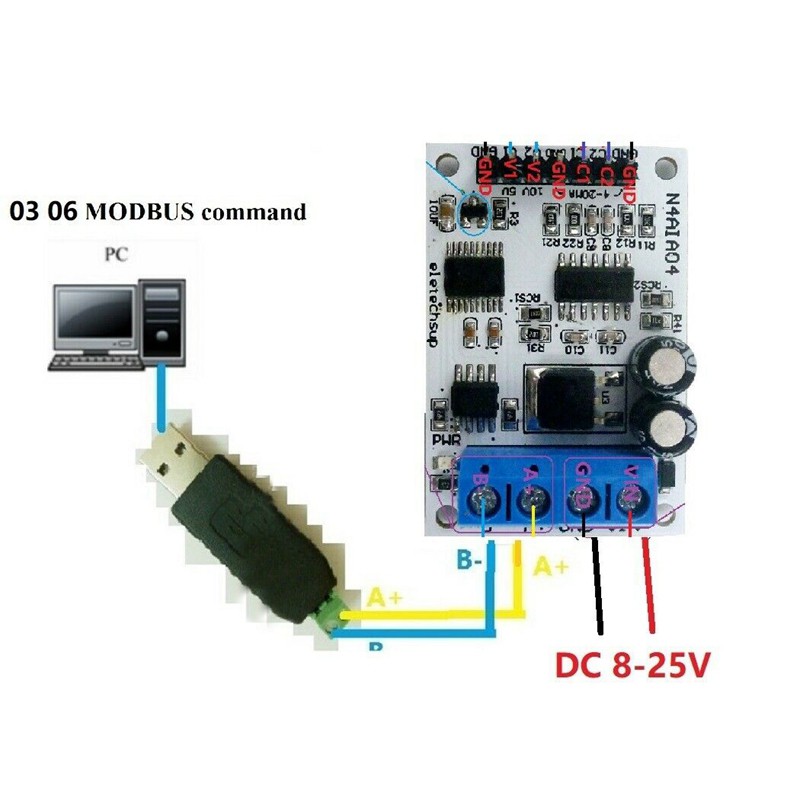

BUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;

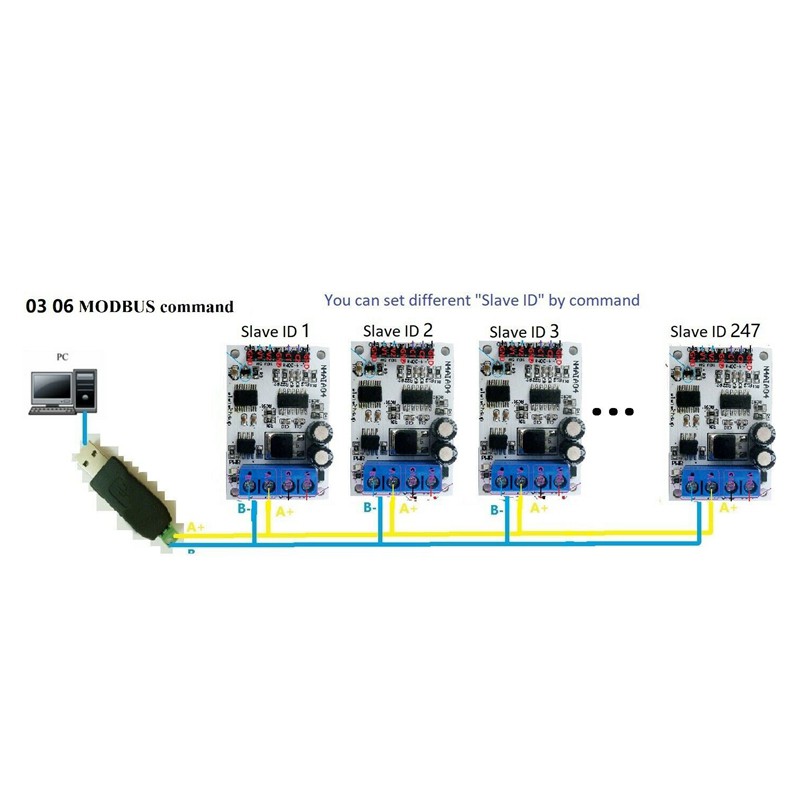

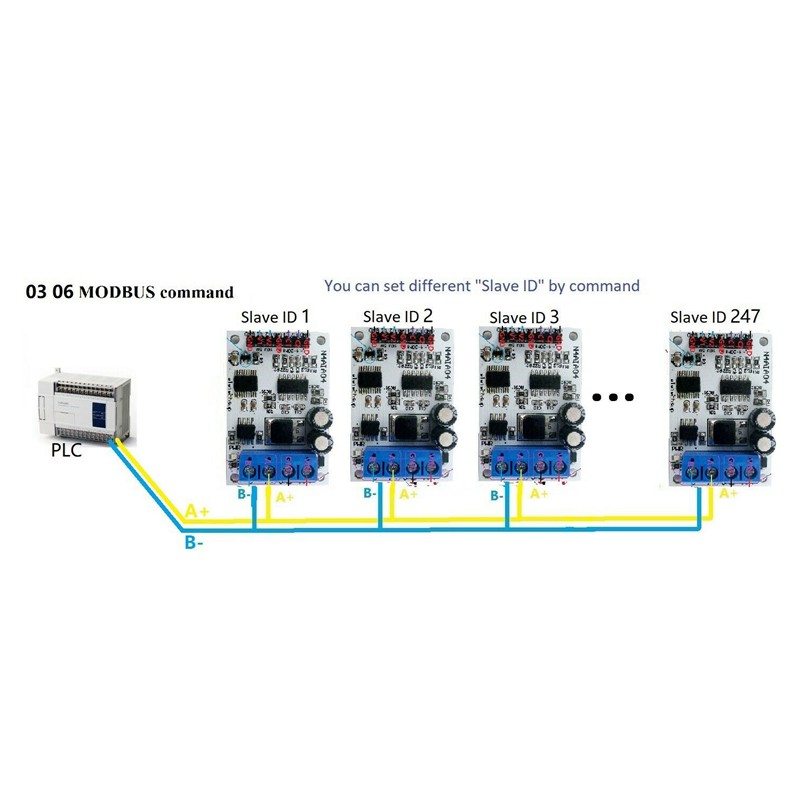

Under the BUS command e, it can support up to 247 devices in parallel
colour: white
Material: PCB
Size: 45x30x15mm
Package Contents:
1 x RS485 bus RTU uleOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
