Bo Mạch Chủ MSI B550-A PRO B550-M PRO NEW 100% CHÍNH HÃNG
1 Đánh Giá
2 Đã Bán
59
2.650.000 đ
Xem sản phẩm trên ShopeeQuận Thanh Khê, Đà Nẵng
chủ nhật 21/11/2021 lúc 10:02 CH
normal
👉 Sản phẩm mới 100%, Chính hãng MSI Việt Nam.
👉 Bảo Hành 36 tháng tại Xuân Vinh Computer hoặc các TTBH MSI trên toàn quốc.
👉 Đã bao gồm VAT.
😍 BO MẠCH CHỦ MSI B550-A PRO 😍
CPU
Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
CHIPSET
AMD B550 Chipset
BỘ NHỚ:
4x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
1DPC 1R Max speed 4800 MHz
1DPC 2R max speed 3866 MHZ
2DPC 1R max speed 4000 MHZ
2DPC 2R max speed 3600 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
KHE CẮM MỞ RỘNG:
1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode
2x PCIe 3.0 x1 slots
ĐỒ HỌA ONBOARD
1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Maximum shared memory of 2048 MB
MULTI-GPU: Supports 2-Way AMD CrossFire™ Technology
LƯU TRỮ: Chipset AMD B550
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
+ Supports PCIe 4.0/ 3.0 x4 1
+ Supports SATA 6Gb/s
+ Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
+ Supports PCIe 3.0x4
+ Supports 2242/ 2260/ 2280 storage devices
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO: Realtek® ALC892 Codec
1-Channel High Definition Audio
1x Realtek® 8111H Gigabit LAN controller
KẾT NỐI NỘI BỘ
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

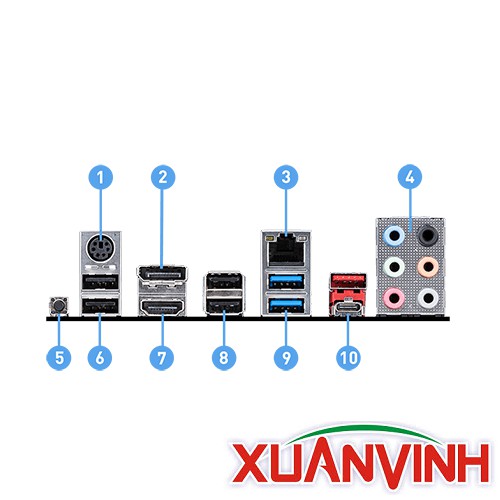

CỔNG KẾT NỐI PHÍA SAU
Keyboard / Mouse
DisplayPort
LAN
HD Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A+C
FORM FACTOR
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
