Bảng Mạch Khuếch Đại Âm Thanh Bluetooth Vhm338 100wx2 Dc 12v-24v
0 Đánh Giá
0 Đã Bán
38
341.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ bảy 29/05/2021 lúc 03:00 CH
Power considerations: 1, VHM-337 can output sound normally when 8V input;
2, The recommended input voltage is 24V, try not to exceed 25V voltage input;
3, If the input voltage is lower than 24V, the maximum power output cannot be achieved. When the maximum output is not enforced due to insufficient voltage, it will be distorted;
4, The power supply used must be able to support the power amplifier's needs, so that the power amplifier can exert its full energy such as 24V DC power supply, and the minimum current needs to be above 4A.

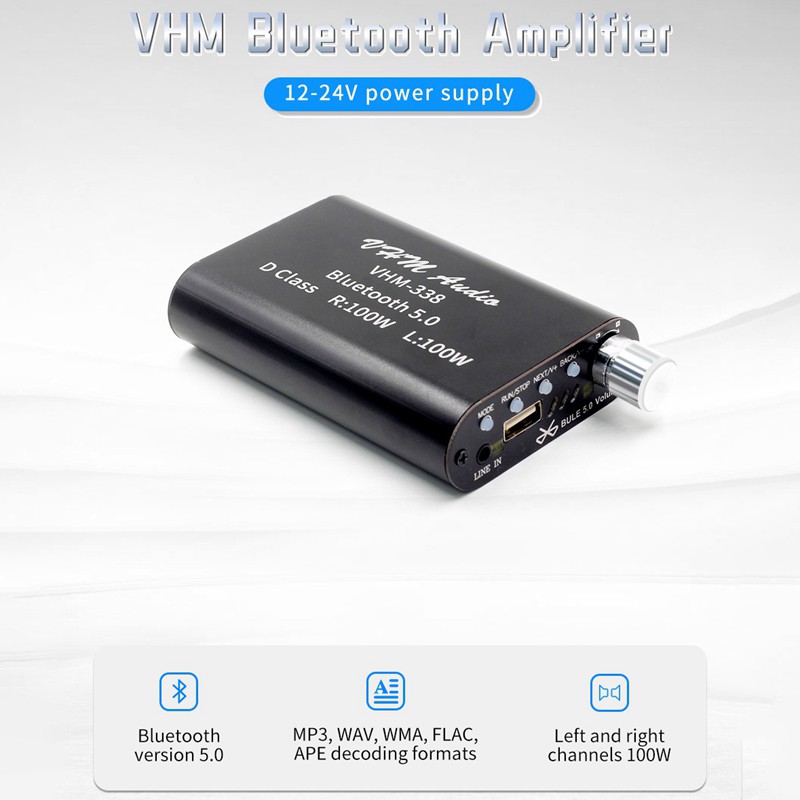

Product specifications: Power supply voltage: 12V-24V power supply
Maximum output power: 100W for each of the left and right channels (4 ohms)
Power amplifier type: Class D
Bluetooth version: 5.0
Bluetooth name: VHM-338
Bluetooth password: no password
Audio source: Bluetooth, U disk, linear input (to ensure sound quality, linear input
Without chip processing, directly transmitted to the amplifier)
Audio source priority: linear input more than U disk more than Bluetooth (that is, when all interfaces are connected, turn on
Enter the high priority e by default, you need to switch the e by pressing the button)
Decoding format MP3, WAV, WMA, FLAC, APE
Bluetooth support file: a2dp/vctp/avdtp/avrcp/hfp/spp/smp/att/gat/rfcomm/sdp/l2cap
colour:black
material:ABS

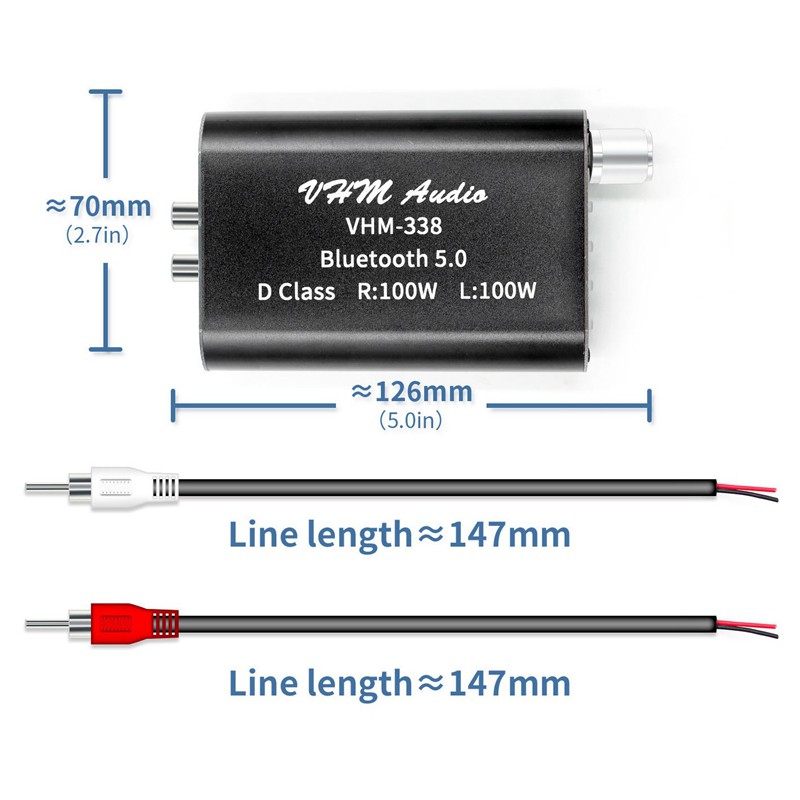

size:126 x 70mm
Package Contents:
1 x Bluetooth amplifier
1 x Red audio cable
1 x White audio cableOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
2, The recommended input voltage is 24V, try not to exceed 25V voltage input;
3, If the input voltage is lower than 24V, the maximum power output cannot be achieved. When the maximum output is not enforced due to insufficient voltage, it will be distorted;
4, The power supply used must be able to support the power amplifier's needs, so that the power amplifier can exert its full energy such as 24V DC power supply, and the minimum current needs to be above 4A.
Product specifications: Power supply voltage: 12V-24V power supply
Maximum output power: 100W for each of the left and right channels (4 ohms)
Power amplifier type: Class D
Bluetooth version: 5.0
Bluetooth name: VHM-338
Bluetooth password: no password
Audio source: Bluetooth, U disk, linear input (to ensure sound quality, linear input
Without chip processing, directly transmitted to the amplifier)
Audio source priority: linear input more than U disk more than Bluetooth (that is, when all interfaces are connected, turn on
Enter the high priority e by default, you need to switch the e by pressing the button)
Decoding format MP3, WAV, WMA, FLAC, APE
Bluetooth support file: a2dp/vctp/avdtp/avrcp/hfp/spp/smp/att/gat/rfcomm/sdp/l2cap
colour:black
material:ABS
size:126 x 70mm
Package Contents:
1 x Bluetooth amplifier
1 x Red audio cable
1 x White audio cableOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
