Bảng Mạch Giải Mã 72w 6a Dmx512 3 Kênh Dc12-24V Cho Đèn Led
0 Đánh Giá
0 Đã Bán
29
92.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ bảy 29/05/2021 lúc 02:55 CH
el: DMX512

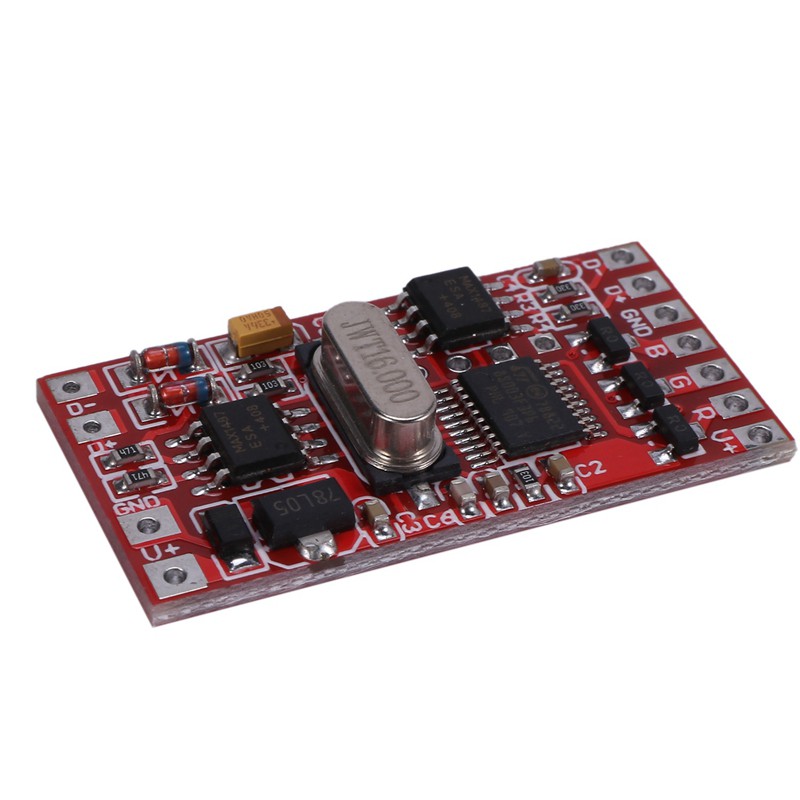

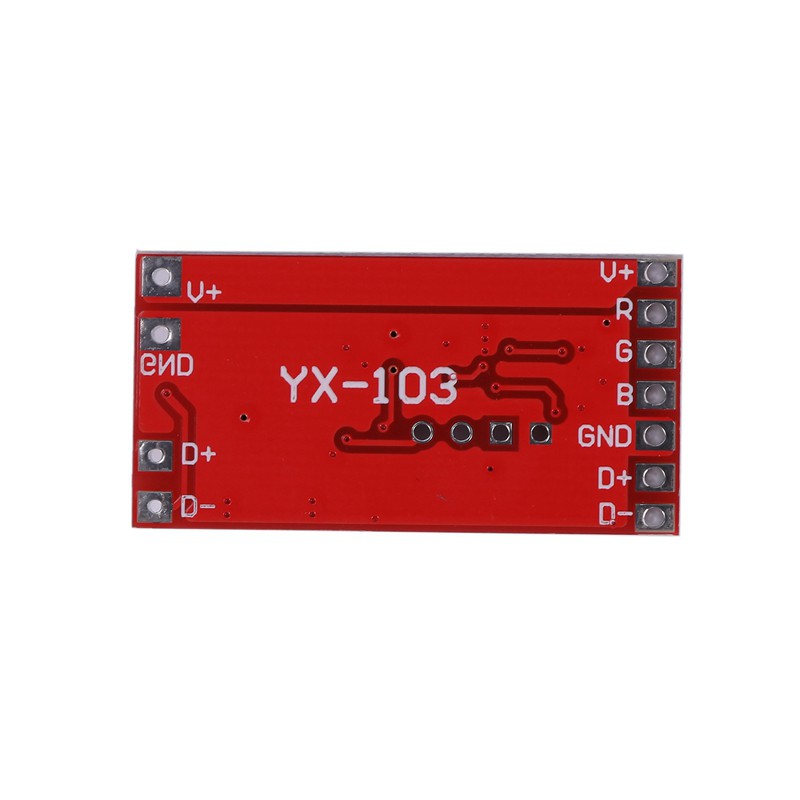

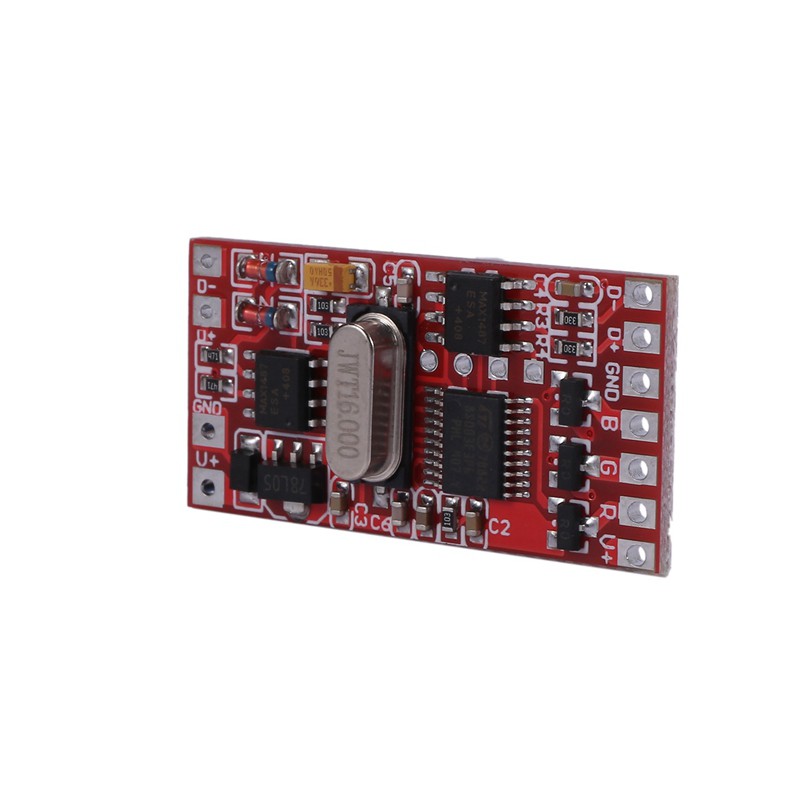

Name: Decoder Board
1.Transmission: RS485 differential transmission, with high resistance to dry worries, transmission distance, easy wiring
2.anti-static, the circuit is stable and reliable
3.Gray-scale 0-100% dimming, 256 * 256 * 256 gray-scale
4.DC power supply
5.Power-on: Boot no impact (instantaneous power LED body), the protective effect of the LED
6.Applications: Mainly used in high-power full-color wall wash lights, spot lights, buried lights, underwater lights, stage lights, tunnel lights.
color: red
Material: metal + PC
1.Size: 36mm*18mm
2.Input voltage: DC12 ~ 24V
3.Output Current: 2A*3 Channel
4.Output Power: 72W
5.Output channels: three channel
e:
Connected with DMX512 controller, the controller will follow the effect of changes
When not associated DMX512 controller will automatically run the built-in effects (colorful hopping, gradient); in serial e,
when not connected to the main controller, the first decoder can automatically becomes the master, synchronize online change.
Package Included:
1 x Decoder BoardOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
